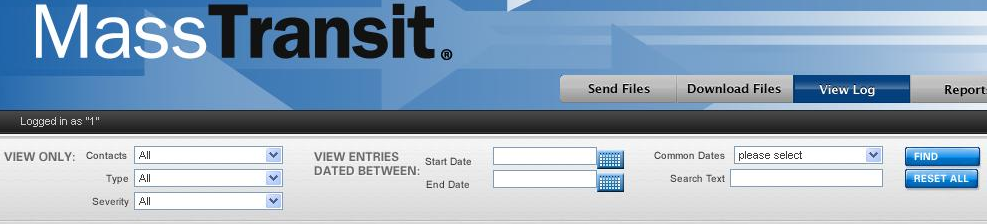

As mentioned above, if you are allowed to use the Log Viewer, you will see a "View Log" tab in your account's user interface. Log into the MassTransit web site and open the "View Log" tab to see information from the Log window of the MassTransit Administrator application.
Log Viewer Options
Depending on the assigned privileges, you will be able to see all log entries of the Log window or only log entries specified by the MassTransit administrator contacts. In addition, there are filters which you can set for displaying the information in a more convenient view and an option for auto-refreshing the displayed log entries.
Log Viewer Filters
When you have set filters in the Log Viewer, the displayed results are the ones that satisfy the conditions from all filters.
The filters available in the Log Viewer are the following:
View Only filters:
Contacts – setting this filter displays log entries only for the specified contact (or a group of contacts); the available options in this drop-down menu are All and the contacts that you have privileges to see information about;
Type – filters all entries of the specified type; these are the available types:
All – shows all entries of all types;
Error – displays error entries;
Connection – displays connection entries which show information about the type of the connection (manual or automatic), when a connection has been established/dismantled, and whether the file transfer has begun/ended;
File Transfer – these entries show information about each of the transferred files – file name, size, transfer time, average bandwidth throughput, and cyclic redundancy check (CRC);
Output – log entries with information regarding services execution;
Spooling – displays printer processing messages;
Notification – all other messages that do not regard the rest of the described options;
Summary – shows summaries of the file transfers including number of transferred files, total transferred file size, average bandwidth throughput, and total transfer time;
Info – displays information about configuration settings like available disc space, remote administration configuration, IP address of your server, database, etc.;
Severity – filters all entries of the specified severity:
All – displays the entries of all severity types;
Error – displays only errors;
Warning – displays only warning messages;
Info – displays only information entries.
View Entries Dated Between filters:
Start Date – enter a date or select one from the calendar next to the field to filter all entries from the specified start date to the present date (or to the End Date, if specified);
End Date – enter a date or select one from the calendar next to the field to filter all entries to the specified end date;
Common Dates – for faster setting of a time interval, you can select from this drop-down menu one of the following options:
Today – displays all entries from today only;
Yesterday – displays all entries from yesterday;
Last 7 Days – displays all entries for the last 7 days;
Last 14 Days – displays all entries for the last 14 days;
Last 30 Days – displays all entries for the last 30 days;
Search Text – enter some text in this field if you want to filter all log entries that contain the entered text.
When you have set the desired filters, click on the FIND button to display the filtered information.
If you want to reset all set filters, just click on the RESET ALL button then FIND.
Real-Time Refresh
The Log Viewer has an option for auto refreshing the displayed log information in real time. By default, the option is disabled but you can enable it by clicking on the On radio-button in the REAL-TIME REFRESH area of the "View Log" tab:
To disable auto refreshing of the Log Viewer, click on the Off radio-button.
Note: The interval for auto refreshing the log viewer can be changed by the administrator of the MassTransit server. Contact the administrator if you want that interval to be increased/decreased.
