Image name and location

Acronis Snap Deploy 4 Master Image Creator can save an image in any of the following locations:

In a network folder
On an internal hard disk of the master machine
On a USB or FireWire (IEEE-1394) storage device (such as a flash drive) that is attached to the master machine
On a DVD+R/RW, DVD-R/RW, CD-R/RW, or recordable Blue-ray Disc (BD-R, BD-RE) that is loaded in the media drive of the master machine

A sizeable image can be split between multiple media automatically.

Select the image location in the device tree. In File name, type the file name of the image. To generate a file name that is unique in the selected location, click Generate a name for the file.

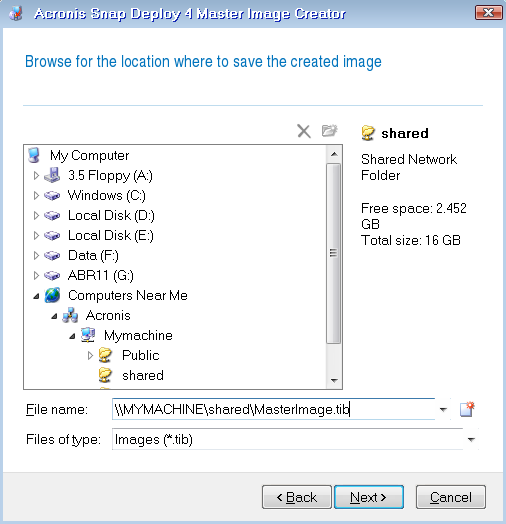

Select the image location

Note: Acronis bootable media uses NetBIOS networking protocol to resolve Acronis Snap Deploy 4 OS Deploy Server in a network. NetBIOS protocol uses ANSI characters for host names. So, machines that have non-English characters in their names cannot be accessed from Acronis bootable media. If the name of the Acronis Snap Deploy 4 OS Deploy Server machine contains non-English characters, use the machine's IP-address to specify it in the network.
