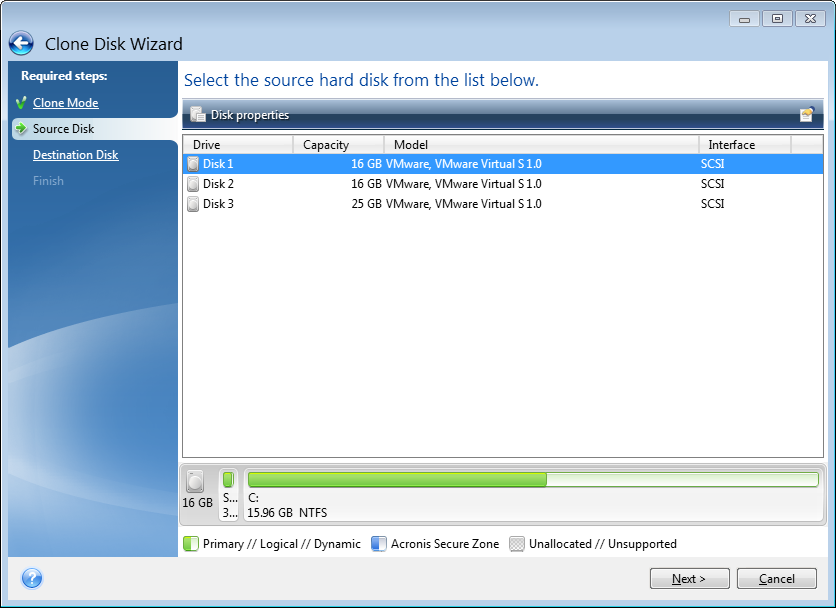

Selecting a source disk

You can determine the source and destination using the information provided in this window (disk number, capacity, label, partition and file system information). If the program finds several partitioned disks, it will ask you which is the source (i.e. the older data disk).

Acronis True Image 2013 does not support cloning of dynamic disks.

• Select the source disk and click Next to continue.

Viewing disk and partition information

• Columns - selects the columns to display. You can change the width of a column by dragging its borders with the mouse.
• Disk properties (duplicated in the context menu, opened by right-clicking objects) - displays the selected partition or disk properties window.

  This window contains two panels. The left panel contains the properties tree and the right one describes the selected property in detail. The disk information includes its physical parameters (connection type, device type, size, etc.); partition information includes both physical (sectors, location, etc.), and logical (file system, free space, assigned letter, etc.) parameters.
