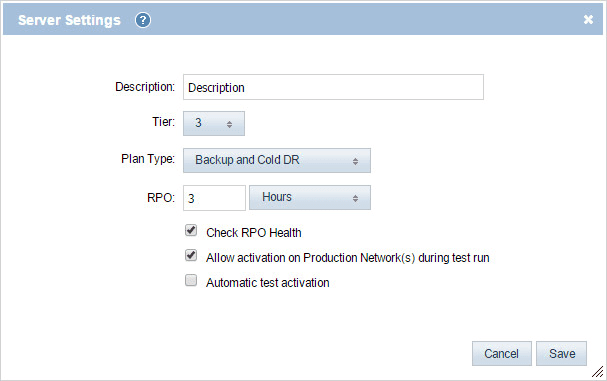

Server Settings Dialog Box

Location: on the Server Details page.
Access path: Servers tab on the menu bar, drill-down to a single server in the servers list, click the pencil icon.

This dialog box lets you change the values of some of the server properties. When "Check RPO Health" is checked, the RPO interval is used in the comparison with actual snapshot activity in the Recovery Point Objective pane on the Dashboard page; when it is not checked, this server is omitted from the RPO pane.

Available operations:

• Add/change settings by entering them and clicking Save.
• Close the dialog box without changing any values by clicking Cancel.

See also:

• Servers > Server Details: Server Details Overview Tab and Snapshots
• Dashboard: Recovery Point Objective
